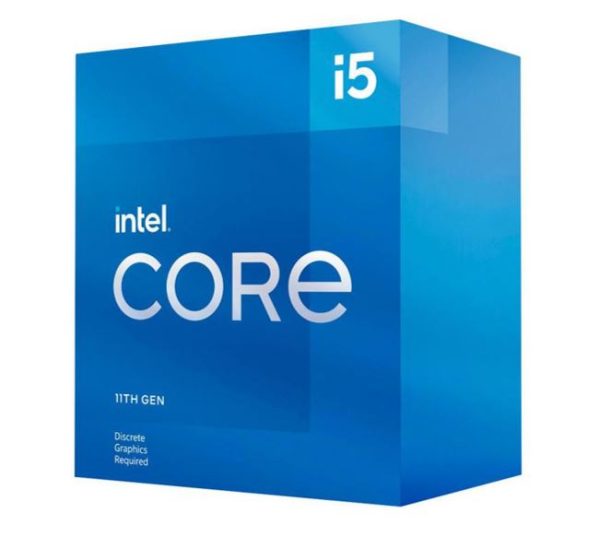

Intel i5-11400F CPU 2.6GHz (4.4GHz Turbo) 11th Gen LGA1200 6-Cores 12-Threads 12MB 65W Graphic Card Required Retail Box 3yrs Rocket Lake

NDA 31/03 New Intel i5-11400F CPU 2.6GHz (4.4GHz Turbo) 11th Gen LGA1200 6-Cores 12-Threads 12MB 65W Graphic Card Required Retail Box 3yrs Rocket Lake

Essentials
Product Collection 11th Generation Intel?? Core??? i5 Processors
Code Name Products formerly Rocket Lake
Vertical Segment Desktop
Processor Number i5-11400F
Status Launched
Launch Date Q1’21
Lithography 14 nm
Use Conditions PC/Client/Tablet
CPU Specifications
# of Cores 6
# of Threads 12
Processor Base Frequency 2.60 GHz
Max Turbo Frequency 4.40 GHz
Cache 12 MB Intel?? Smart Cache
Bus Speed 8 GT/s
Intel?? Turbo Boost Technology 2.0 Frequency??? 4.40 GHz
TDP 65 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-3200
Max # of Memory Channels 2
Max Memory Bandwidth 50 GB/s
ECC Memory Supported ??? No
Expansion Options
Scalability 1S Only
PCI Express Revision 4
PCI Express Configurations ??? Up to 1×16+1×4, 2×8+1×4, 1×8+3×4
Max # of PCI Express Lanes 20

Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)??? 4096×2160@30Hz
Max Resolution (DP)??? 4096×2304@60Hz
Max Resolution (eDP – Integrated Flat Panel)??? 4096×2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel?? Quick Sync Video Yes
Intel?? InTru??? 3D Technology Yes
Intel?? Clear Video HD Technology Yes
Intel?? Clear Video Technology Yes
# of Displays Supported ??? 3
Device ID 0x9BC5
Expansion Options
Scalability 1S Only
PCI Express Revision 3
PCI Express Configurations ??? Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015D
