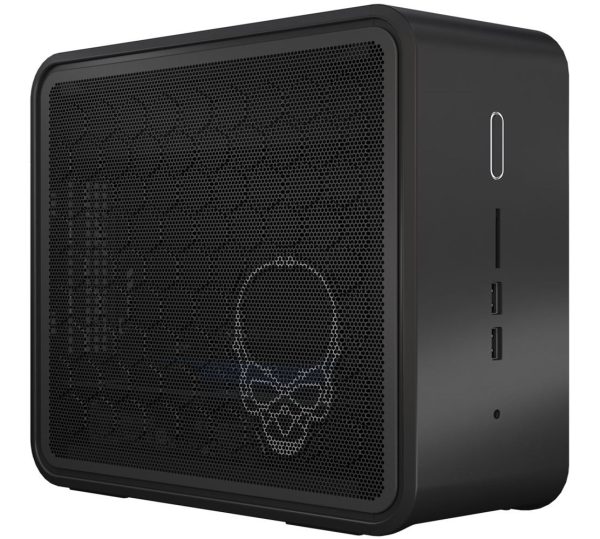

Intel NUC 9 Extreme Ghost Canyon i5-9300H 4.1GHz 2xDDR4 3xM.2 2xThunderbolt HDMI 3xDisplays Support Desktop Graphics 2xGbE LAN WiFi 6 BT5 no AC cord

Intel NUC 9 Extreme Ghost Canyon i5-9300H 4.1GHz 2xDDR4 3xM.2 2xThunderbolt HDMI 3xDisplays Support Desktop Graphics 2xGbE LAN WiFi 6 BT5 6xUSB3.1 no power cord

Essentials
Product Collection Intel?? NUC Kit with 9th Generation Intel?? Core??? Processors
Code Name Products formerly Ghost Canyon
Status Launched
Launch Date Q1’20
Supported Operating Systems Windows 10, 64-bit*, Linux*
Board Number NUC9i5QNB
Board Form Factor PCIe
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 3
Board Chipset Mobile Intel?? CM246 Chipset
Processor Included Intel?? Core??? i5-9300H Processor (8M Cache, up to 4.10 GHz)
Intel vPro?? Platform Eligibility ??? No
# of Cores 4
# of Threads 8
Processor Base Frequency 2.40 GHz
Max Turbo Frequency 4.10 GHz
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 42.6 GB/s
Max # of DIMMs 2
ECC Memory Supported ??? No
Processor Graphics
Processor Graphics ??? Intel?? UHD Graphics 630
Integrated Graphics ??? Yes
Graphics Output 2x Thunderbolt 3, HDMI 2.0a
# of Displays Supported ??? 3
Discrete Graphics Via PCIe add-in card(s)
Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ??? 2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU) Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8′ max card length
PCIe x4 Gen 3 1
PCIe x16 Gen 3 1
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (storage) 2x via PCH + 1x via CPU (NVMe)
I/O Specifications
# of USB Ports 11
USB Configuration 4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 2.0 via internal headers, 1x USB 2.0 internal
