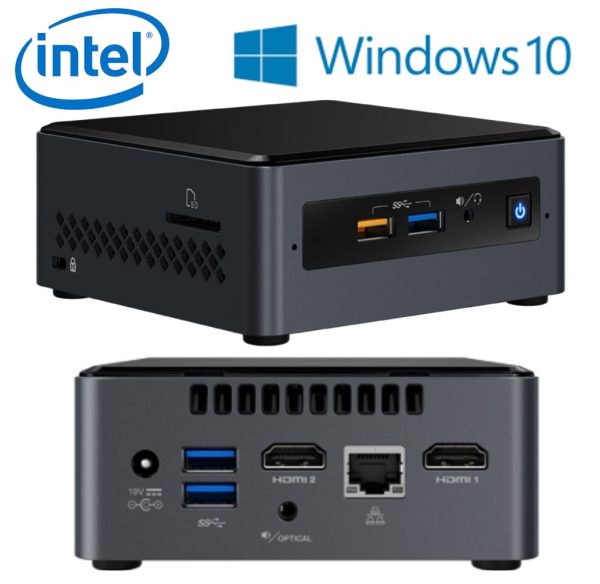

Intel NUC BOXNUC7CJYSAMN mini PC J4005 2.7GHz 4GB DDR4 64GB eMMC 2.5′ HDD Windows 10 Home 2xHDMI 2xDisplays GbE LAN WiFi BT No Audio Jack no AC cord

Intel NUC BOXNUC7CJYSAMN mini PC J4005 2.7GHz 4GB DDR4 64GB eMMC 2.5′ HDD Windows 10 Home 2xHDMI 2xDisplays GbE LAN WiFi BT 4xUSB3.0 No Audio Jack

Essentials
Product Collection Intel?? NUC Mini PC with Intel?? Celeron?? Processors
Code Name Products formerly JUNE CANYON
Status Launched
Launch Date Q2’21
Supported Operating Systems Windows 11* | Windows 10*
Board Number NUC7JYBN
Board Form Factor UCFF (4′ x 4′)
Socket Soldered-down BGA
Internal Drive Form Factor 2.5′ Drive
# of Internal Drives Supported 1
Embedded Storage 64 GB
Lithography 14 nm
TDP 10 W
DC Input Voltage Supported 12-19 VDC
Pre-Installed Operating System Windows 10 | 64-bit*
Processor Included Intel?? Celeron?? J4005 Processor (4M Cache | up to 2.70 GHz)
Intel vPro?? Platform Eligibility ??? No
Total Cores 2
Total Threads 2
Processor Base Frequency 2.00 GHz
Warranty Period 3 yrs

Supplemental Information
Embedded Options Available No
Description Other features: 4GB DDR4 SO-DIMM; 64GB eMMC on-board; Windows?? 10 | 64-bit Home pre-installed. Includes SDXC card slot. Does not include 3.5mm audio or microphones
Product Brief View now

Memory & Storage
Included Storage 64GB eMMC
Included Memory 1x 4GB DDR4 RAM
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported ??? No

Processor Graphics
Integrated Graphics ??? Yes
Graphics Output 2x HDMI 2.0a

Expansion Options
Removable Memory Card Slot SDXC with UHS-I support

I/O Specifications
# of USB Ports 6
USB Configuration 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision 2.0 | 3.0
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 1
Max # of SATA 6.0 Gb/s Ports 1
RAID Configuration N/A
Audio (back channel + front channel) 7.1 digital
Integrated LAN Realtek 8111H-CG
