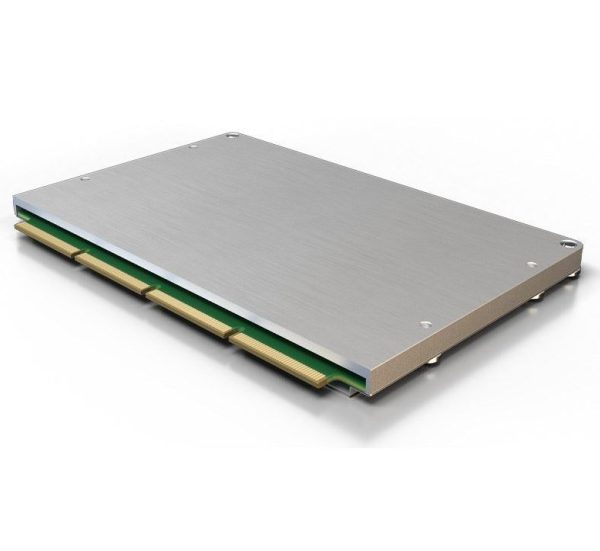

Intel NUC Elements i5-8265U 3.9GHz 8GB LPDDR3 2xPCIe x4 Gen 3 NVMe/SATA 24×7 3xDisplays HD Graphics 620 WiFi BT GbE LAN USB

Intel NUC Elements i5-8265U 3.9GHz 8GB LPDDR3 2xPCIe x4 Gen 3 NVMe/SATA 24×7 3xDisplays HD Graphics 620 WiFi BT GbE LAN USB

?? Powered by an 8th generation Intel Core i5-8265U 1.6GHz, up to 3.9GHz (Turbo) processor
?? 8GB soldered dual-channel LPDDR3 Memory
?? Intel?? Wireless-AC 9560 802.11ac 2×2 + Bluetooth 5 capabilities
?? Qualified for 24/7 operation and temperatures from 0-40??C
?? Supports Windows 10 & Linux operating systems

Essentials
Product Collection
Intel?? NUC Compute Elements

Status
Launched

Launch Date
Q4’19

Board Form Factor
U-Series Compute Element (95 x 65 x 6 mm)

Processor Included
Intel?? Core??? i5-8265U Processor

# of Cores
4

# of Threads
8

Processor Base Frequency
1.60 GHz

Max Turbo Frequency
3.90 GHz

Warranty Period
3 Years

Memory & Storage
Included Memory
8GB

Memory Types
LPDDR3-2133

Max # of Memory Channels
2

ECC Memory Supported
No

Processor Graphics
Processor Graphics
Intel?? UHD Graphics 620

Integrated Graphics
Yes

Graphics Output
2x DDI (configurable as DP/HDMI), 1x eDP

# of Displays Supported
3

Expansion Options
PCI Express Configurations
1x PCIe x4 Gen 3 (NVMe/SATA)
1x PCIe x4 Gen 3 (NVMe)
1x PCIe x1 Gen 3

I/O Specifications
USB Configuration
4x USB 3.2 Gen 2, 3x USB 2.0

Integrated LAN
Built-in GbE MAC (for i219 PHY)

Integrated Wireless
Intel?? Wireless-AC 9560 + Bluetooth 5.0

Integrated Bluetooth
Yes

Additional Headers
HD Audio, DMIC, eSPI

Advanced Technologies
Intel?? Virtualization Technology for Directed I/O (VT-d)
Yes

Intel?? vPro??? Platform Eligibility
No

Intel?? Virtualization Technology (VT-x)
Yes

Intel?? Platform Trust Technology (Intel?? PTT)
Yes

Security & Reliability
Intel?? AES New Instructions
Yes

Intel?? Trusted Execution Technology
No
