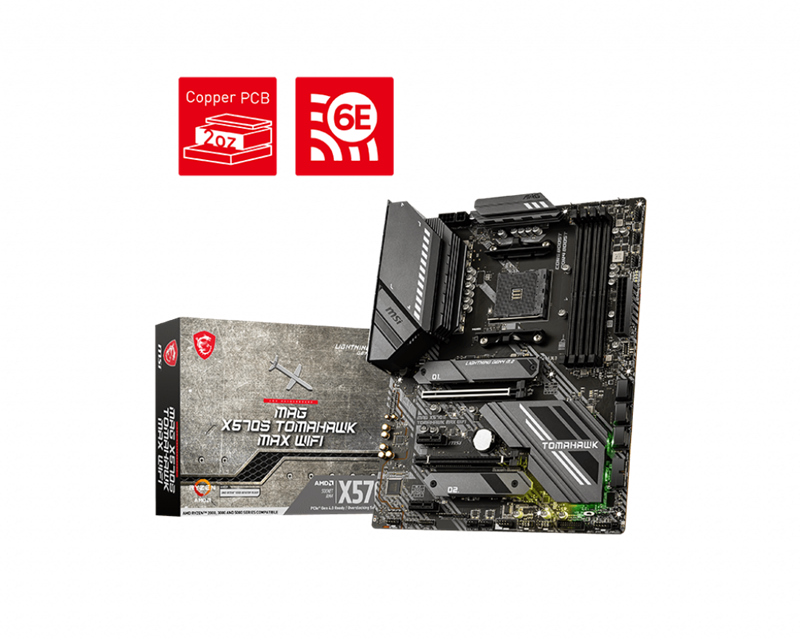

MSI MAG X570S TOMAHAWK MAX WIFI AM4 ATX Motherboard, 4x DDR4 ~128GB, 2x PCI-E x16, 2x PCI-E x1, 6x SATAIII, 2x M.2, RAID 0/1/10, 1x USB-C, 4x USB 3.2

MSI MAG X570S TOMAHAWK MAX WIFI AM4 ATX Motherboard, 4x DDR4 ~128GB, 2x PCI-E x16, 2x PCI-E x1, 6x SATAIII, 2x M.2, RAID 0/1/10, 1x USB-C, 4x USB 3.2

MAG X570S TOMAHAWK MAX WIFI
Supports AMD Ryzen??? 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, up to 5100(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire???

Model Name MAG X570S TOMAHAWK MAX WIFI
CPU Support Supports AMD Ryzen???
5000 Series, 5000 G-Series, 4000 GSeries, 3000 Series, 3000 G-Series, 2000 Series and 2000 GSeries desktop processors
CPU Socket Socket AM4
Chipset AMD X570 Chipset
Graphics
Interface
2x PCIe 4.0 x16 slots
Support AMD CrossFire??? Technology
Display Interface Support 4K@60Hz as specified in HDMI 2.1
??? Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-5100 (OC)
Expansion Slots 2x PCIe 3.0 x1 slots
Storage 2x M.2 Gen4 x4 slots, 6x SATA 6Gb/s ports
USB ports 5x USB 3.2 Gen 2 10G (3 Type-A + 2 Type-C)
6x USB 3.2 Gen 1 5G (6 Type-A)
6x USB 2.0
LAN 1x Realtek??
8125B 2.5G LAN
WiFi / BT Intel??
Wi-Fi 6E AX210, Bluetooth 5.2
Audio 8-Channel (7.1) HD Audio with Audio Boost 5
