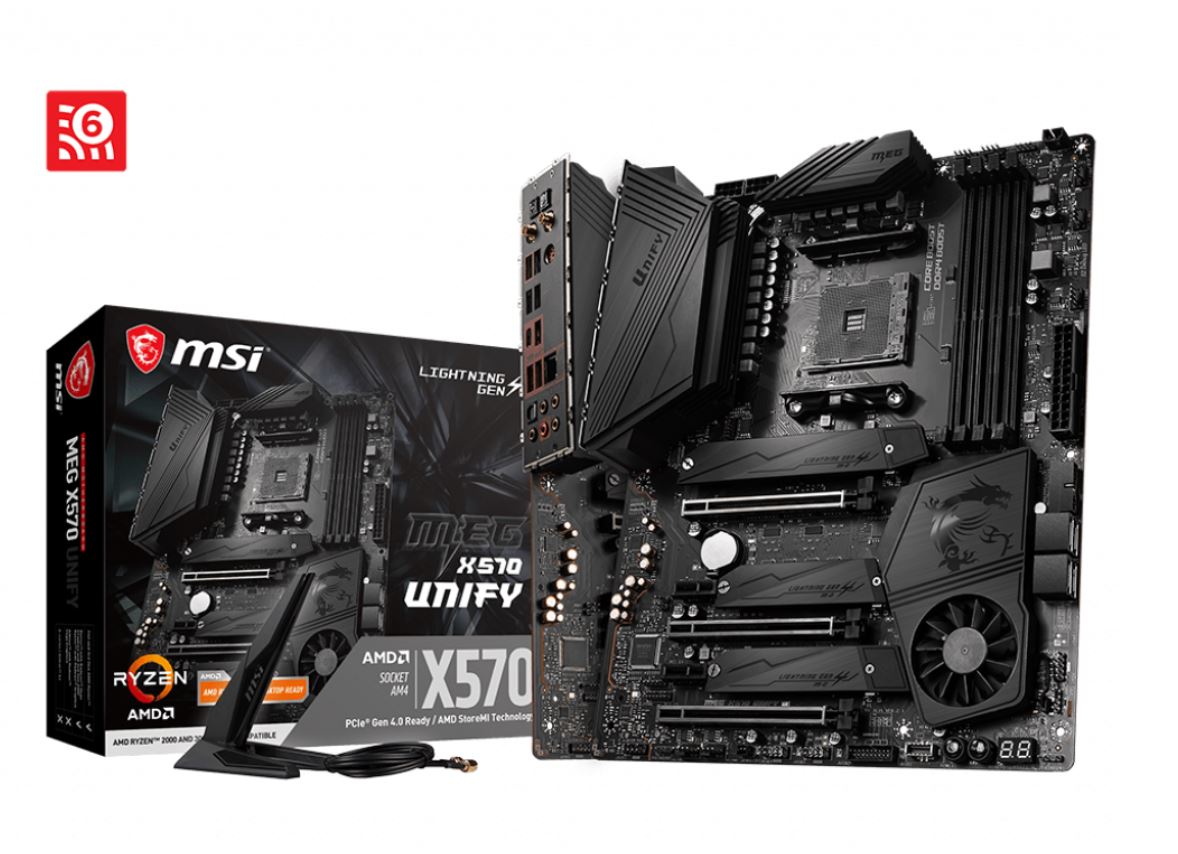

MSI MEG X570 UNIFY PRO Ryzen AM4 ATX MB 4xDDR4 5xPCIe 3xM.2 Gen4 RAID 4xSATAIII 2.5 GbE LAN WiFi6 SLI CF 5xUSB3.2 6xUSB2.0 (LS)

MSI MEG X570 UNIFY PRO Ryzen AM4 ATX MB 4xDDR4 5xPCIe 3xM.2 Gen4 RAID 4xSATAIII 2.5 GbE LAN WiFi6 SLI CF 5xUSB3.2 6xUSB2.0

Feature
Supports 2nd and 3rd Gen AMD Ryzen??? / Ryzen??? with Radeon??? Vega Graphics and 2nd Gen AMD Ryzen??? with Radeon??? Graphics Desktop Processors for AM4 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Aluminum Cover with Extended Heatsink: All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.
Lightning Fast Game Experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
2.5G Gaming LAN with Latest Wi-Fi 6 Solution: Onboard 2.5G LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.
Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Socket AM4
CPU (Max Support) RYZEN 9
Chipset AMD?? X570 Chipset
DDR4 Memory 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 + Mhz by JEDEC and A-XMP OC MODE
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 3
PCI-E x1 2
SATAIII 4
M.2 Slot 3
RAID 0/1/10
TPM (header) 1
LAN 1x Realtek?? RTL8125 2.5 Gbps LAN controller
USB 3.2 ports (Front) 1(Gen2, Type C), 4(Gen1, Type A)
USB 3.2 ports (Rear) 1(Gen2, Type C), 3(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 2
Audio ports (Rear) 5+ Optical S/PDIF (Realtek?? ALC1220 Codec)
DirectX 12
Form Factor ATX
SLI Y
